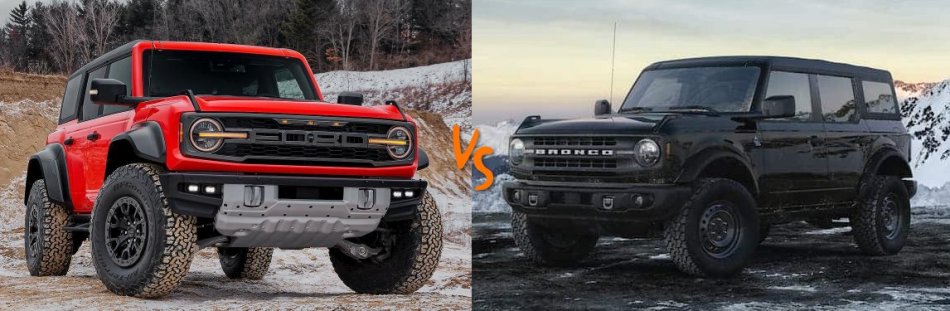

2022 Ford Bronco Raptor compared to 2022 Ford Bronco Badlands.



Ford Authority did a recent article comparing the specs between the 2022 Ford Bronco Raptor and the 2022 Ford Bronco Badlands. They compared everything between the two, from size of the interior and exterior, to the suspension and engine. Below shows the detailed comparisons they made.

2022 Ford Bronco Raptor vs 2022 Ford Bronco Badlands(with the Sasquatch Package) Exterior Specs:

2022 Ford Bronco Raptor2022 Ford Bronco Badlands Sasquatch
Wheelbase (inches)116.5116.1
Overall Length (inches)191190.5
Overall Width* (inches)85.776.3
Overall Height (inches)77.873.9
Front Track Width (inches)73.265
Rear Track Width (inches)73.665
Curb weight (pounds)**5,7335226/5,320**
* with mirrors folded
2.3L/2.7L

You can see that the the wheelbase and length differences are that much off but we all knew the Bronco Raptor would be much more wider and taller. What I am really shocked about is the differences in weight. The Bronco Raptor weights over 500lbs more then then the Bronco Badlands. That could be due to the beefed up suspension maybe??

2022 Ford Bronco Raptor vs 2022 Ford Bronco Badlands(with the Sasquatch Package) Interior Specs:



Dimension2022 Ford Bronco Raptor2022 Ford Bronco Badlands Sasquatch
Seating Capacity (passengers)55
Front Headroom (inches)40.840.8
Front Legroom (inches)43.143.1
Front Shoulder Room (inches)57.157.1
Front Hip Room (inches)55.955.9
Rear Headroom (inches)40.140.1
Rear Legroom (inches)36.336.3
Rear Shoulder Room (inches)56.556.5
Rear Hip Room (inches)54.854.8

So between the Raptor and Badlands, it looks there isn't any differences between the two on the inside. Not a shock here.

2022 Ford Bronco Raptor vs 2022 Ford Bronco Badlands(with the Sasquatch Package) Powertrain:



2022 Ford Bronco Raptor2022 Ford Bronco Badlands Sasquatch (Standard)2022 Ford Bronco Badlands Sasquatch (Optional)

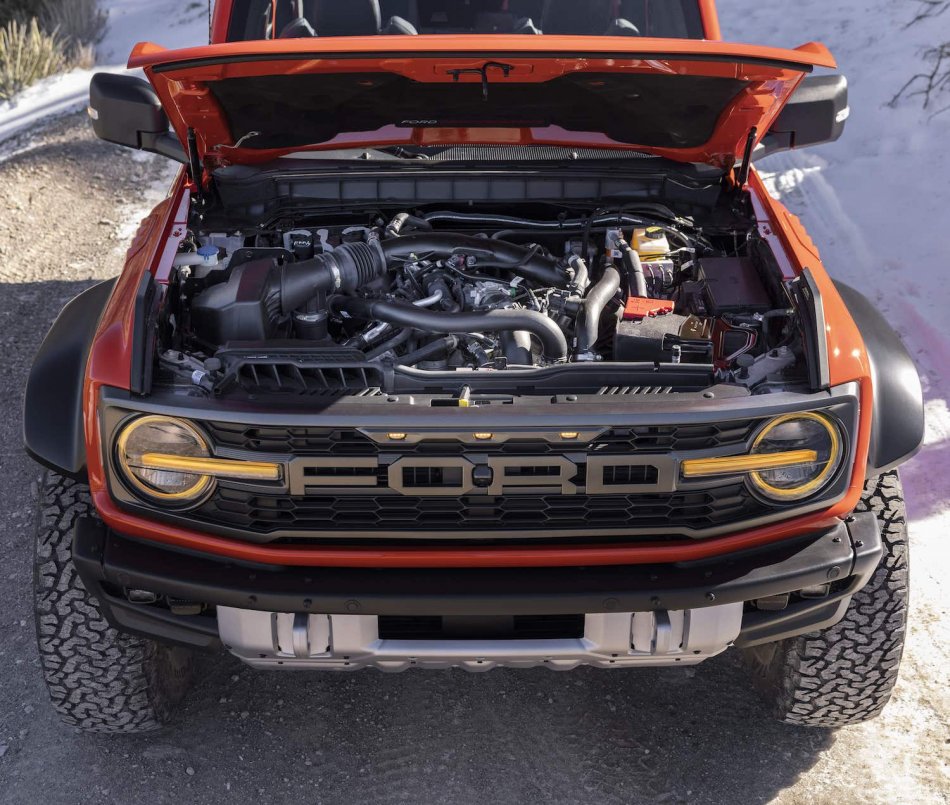

Engine3.0L EcoBoost V62.3 EcoBoost I-42.7L EcoBoost V6
Power (hp)400+275*315*
Torque (Ib-ft)415+315*410*
Transmission10-speed automatic10-speed automatic10-speed automatic
Transfer Case2-speed on-demand2-speed on-demand2-speed on-demand
Rear Axle Ratio4.74.74.7
Towing (Ibs)4,5003,5003,500
Payload (Ibs)11001,3701,370
* regular 87 octane

With the 3.0L EcoBoost v6 in the Raptor, it will have more horsepower then the Badlands. For now, you can only get the 3.0L Ecoboost in the Raptor. I know alot of expected owners where hoping Ford would put in the 3.5L Ecoboost in it, which the 2022 Ford Raptors are running with, but I feel the 3.0L will work well with the Bronco Raptor.

We already know that the Bronco Raptor can tow 1000lbs more then the Badlands Broncos, but for the Bronco Raptor, the payload is a little less, at 1100 compared to 1370 for the Badlands.


2022 Ford Bronco Raptor vs 2022 Ford Bronco Badlands(with the Sasquatch Package) Suspension:



Suspension2022 Ford Bronco Raptor2022 Ford Bronco Badlands Sasquatch

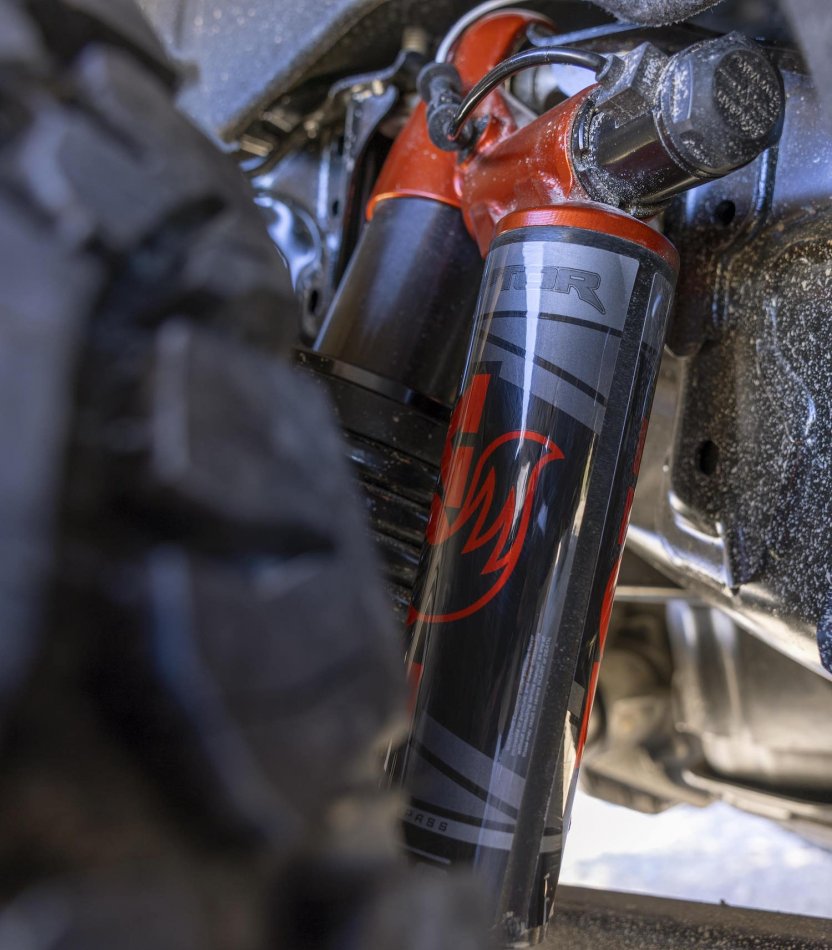

Damper typeFox Live Valve with position sensitive dampers and Fox 3.1 internal bypass dampers with integrated resevoirsBilstein Position Sensitive Dampers
Damper diameter (inches)3.1Not provided
Front Suspension TypeLow-mass independentIndependent with twin alloy A-arms and coil-over springs
Rear Suspension TypeFive-link solid rear axle with Panhard rod and outboard coilover springsFive-link solid rear axle with Panhard rod and outboard coilover springs
Front Suspension Travel (inches)139.4
Rear Suspension Travel (inches)1410.3
Front axleDana 44 AdvanTEK M210 with Spicer Performa-TraK electronic locking differentialDana AdvanTEK with Spicer Performa-TraK electronic locking differential
Rear axleDana 50 heavy-duty AdvanTEK M235 solid differential with Spicer Performa-TraK electronic locking differentialDana 44 AdvanTEK with Spicer Performa-TraK electronic locking differential



We all pretty much new there wasn't going to be any close comparison here. With the Fox Live Dampers that the and the Dana 44/50 differential the Bronco Raptor houses underneath, the off road capability between the two goes to the Bronco Raptor of course!

The article on Ford Authority goes on with more detailed specs on the Approach angles and tires sizes. So if you would like to continue to read about that, here is the rest of the article:

2022 Ford Bronco Raptor vs. Ford Bronco Badlands Sasquatch Deep Dive


TRW22

Member
Joined
Jan 26, 2022
Messages
67
Reaction score
30
Location
Logan, Utah
Cool comparison. What they didn't do is compare the prices though. :) We all know the Raptor will be about $10k MSRP more, and the dealers will then add on another $20k after that.


jzweedyk

Active member
Joined
Nov 10, 2021
Messages
175
Reaction score
103
Location
Moab - Vegas
It is like they read my mind on what to do with the Bronco to make it awesome. All I will have to do to it is add a family radio, stubby antennae and ARB twin compressor (maybe two with a tank), tools and it will be good to go.

OP
OP
Shaggy

Shaggy

Administrator
Staff member
Admin
Joined
Oct 30, 2021
Messages
685
Reaction score
194
Location
Arizona
It is like they read my mind on what to do with the Bronco to make it awesome. All I will have to do to it is add a family radio, stubby antennae and ARB twin compressor (maybe two with a tank), tools and it will be good to go.

Are you talking a CB radio as the family radio? I do like the idea of the ARB compressor. Do you have one on your F150 Raptor now?


jzweedyk

Active member
Joined
Nov 10, 2021
Messages
175
Reaction score
103
Location
Moab - Vegas
I have CB in my Raptor and Jeep, but I am going to switch over to GRMS. I have a couple of handhelds and they work a lot better than CB.

I have the twin ARB in my Raptor and Jeep and the single in my RZR. With the Braptor, I may put in two twins and tie them into a 3 or 5 gallon tank for faster fill ups. While my Jeep has 39" tires, I usually only go from about 12 to 20 PSI as it spends it's whole life in Moab. When I had to fill them up to highway pressure it took a while. The Braptor will be used on the highway as well as off road, and with 37s, it will take a while, so I might spend the big bucks and do it right if there is room. I don't like mounting them under the hood because of the heat, and I will not mount under the cab because of the dust and dirt, so the compressor has to go in the cabin, maybe under the back seat, which is where it is on my Raptor.


Iceman

Administrator
Staff member
Admin
Joined
Nov 2, 2021
Messages
587
Reaction score
160
Location
Gilbert, Az
Cool comparison. What they didn't do is compare the prices though. :) We all know the Raptor will be about $10k MSRP more, and the dealers will then add on another $20k after that.
Pretty sad, but will most likely be the deal for sure


Iceman

Administrator
Staff member
Admin
Joined
Nov 2, 2021
Messages
587
Reaction score
160
Location
Gilbert, Az


Ford Authority did a recent article comparing the specs between the 2022 Ford Bronco Raptor and the 2022 Ford Bronco Badlands. They compared everything between the two, from size of the interior and exterior, to the suspension and engine. Below shows the detailed comparisons they made.

2022 Ford Bronco Raptor vs 2022 Ford Bronco Badlands(with the Sasquatch Package) Exterior Specs:

2022 Ford Bronco Raptor2022 Ford Bronco Badlands Sasquatch
Wheelbase (inches)116.5116.1
Overall Length (inches)191190.5
Overall Width* (inches)85.776.3
Overall Height (inches)77.873.9
Front Track Width (inches)73.265
Rear Track Width (inches)73.665
Curb weight (pounds)**5,7335226/5,320**
* with mirrors folded
2.3L/2.7L

You can see that the the wheelbase and length differences are that much off but we all knew the Bronco Raptor would be much more wider and taller. What I am really shocked about is the differences in weight. The Bronco Raptor weights over 500lbs more then then the Bronco Badlands. That could be due to the beefed up suspension maybe??

2022 Ford Bronco Raptor vs 2022 Ford Bronco Badlands(with the Sasquatch Package) Interior Specs:



Dimension2022 Ford Bronco Raptor2022 Ford Bronco Badlands Sasquatch
Seating Capacity (passengers)55
Front Headroom (inches)40.840.8
Front Legroom (inches)43.143.1
Front Shoulder Room (inches)57.157.1
Front Hip Room (inches)55.955.9
Rear Headroom (inches)40.140.1
Rear Legroom (inches)36.336.3
Rear Shoulder Room (inches)56.556.5
Rear Hip Room (inches)54.854.8

So between the Raptor and Badlands, it looks there isn't any differences between the two on the inside. Not a shock here.

2022 Ford Bronco Raptor vs 2022 Ford Bronco Badlands(with the Sasquatch Package) Powertrain:


2022 Ford Bronco Raptor2022 Ford Bronco Badlands Sasquatch (Standard)2022 Ford Bronco Badlands Sasquatch (Optional)
Engine3.0L EcoBoost V62.3 EcoBoost I-42.7L EcoBoost V6
Power (hp)400+275*315*
Torque (Ib-ft)415+315*410*
Transmission10-speed automatic10-speed automatic10-speed automatic
Transfer Case2-speed on-demand2-speed on-demand2-speed on-demand
Rear Axle Ratio4.74.74.7
Towing (Ibs)4,5003,5003,500
Payload (Ibs)11001,3701,370
* regular 87 octane

With the 3.0L EcoBoost v6 in the Raptor, it will have more horsepower then the Badlands. For now, you can only get the 3.0L Ecoboost in the Raptor. I know alot of expected owners where hoping Ford would put in the 3.5L Ecoboost in it, which the 2022 Ford Raptors are running with, but I feel the 3.0L will work well with the Bronco Raptor.

We already know that the Bronco Raptor can tow 1000lbs more then the Badlands Broncos, but for the Bronco Raptor, the payload is a little less, at 1100 compared to 1370 for the Badlands.


2022 Ford Bronco Raptor vs 2022 Ford Bronco Badlands(with the Sasquatch Package) Suspension:


Suspension2022 Ford Bronco Raptor2022 Ford Bronco Badlands Sasquatch
Damper typeFox Live Valve with position sensitive dampers and Fox 3.1 internal bypass dampers with integrated resevoirsBilstein Position Sensitive Dampers
Damper diameter (inches)3.1Not provided
Front Suspension TypeLow-mass independentIndependent with twin alloy A-arms and coil-over springs
Rear Suspension TypeFive-link solid rear axle with Panhard rod and outboard coilover springsFive-link solid rear axle with Panhard rod and outboard coilover springs
Front Suspension Travel (inches)139.4
Rear Suspension Travel (inches)1410.3
Front axleDana 44 AdvanTEK M210 with Spicer Performa-TraK electronic locking differentialDana AdvanTEK with Spicer Performa-TraK electronic locking differential
Rear axleDana 50 heavy-duty AdvanTEK M235 solid differential with Spicer Performa-TraK electronic locking differentialDana 44 AdvanTEK with Spicer Performa-TraK electronic locking differential


We all pretty much new there wasn't going to be any close comparison here. With the Fox Live Dampers that the and the Dana 44/50 differential the Bronco Raptor houses underneath, the off road capability between the two goes to the Bronco Raptor of course!

The article on Ford Authority goes on with more detailed specs on the Approach angles and tires sizes. So if you would like to continue to read about that, here is the rest of the article:

2022 Ford Bronco Raptor vs. Ford Bronco Badlands Sasquatch Deep Dive
Nice comparison article. What a huge difference going the BR compared to the others. Just the power and torque alone make the price worth getting (obviously if cost isn't and issue).


jzweedyk

Active member
Joined
Nov 10, 2021
Messages
175
Reaction score
103
Location
Moab - Vegas
I notice two things missing from the F-150 Raptor. One, no hot spot listed, says connected, but that is it. Two, no cooled seats.


Iceman

Administrator
Staff member
Admin
Joined
Nov 2, 2021
Messages
587
Reaction score
160
Location
Gilbert, Az
I notice two things missing from the F-150 Raptor. One, no hot spot listed, says connected, but that is it. Two, no cooled seats.
Yep! As we know being in the desert that AC seats are almost a requirement. Well at least here in Phoenix! 🔥🔥


jzweedyk

Active member
Joined
Nov 10, 2021
Messages
175
Reaction score
103
Location
Moab - Vegas
On a 80K (I assume with lux package and other things) truck with desert terrain suspension, that is an oversight on their part. Somebody needs to tell Ford that.
